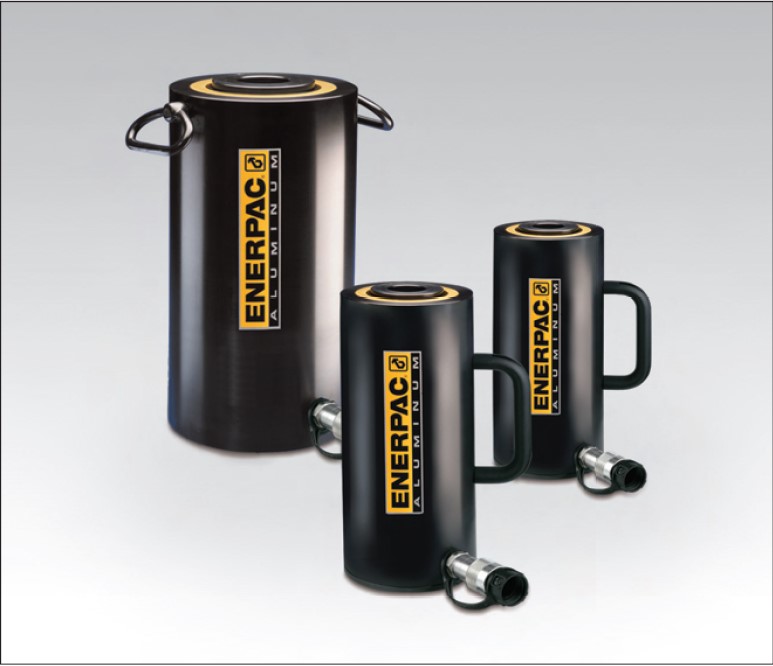

RC, P, V-系列@耐高溫防腐蝕產(chǎn)品
最強抗腐蝕性
鍍鎳缸體和閥體，可抗腐蝕
不銹鋼柱塞防止腐蝕和生銹
氟橡膠 密封提供耐高溫防化學
陽極氧化鋁為材質的油箱和塑料包封的泵體
雙速操作，手柄行程比單速操作時減少78%
手柄可鎖定搬運方便
|
Cylinder Capacity (ton) |
Stroke (in) |
Model Number |
Oil Capacity (in3) |
Pressure Rating (psi) |
Weight (lbs) |
|---|---|---|---|---|---|
| 5 | 3.0 | RC-53NV | 2.98 | 10,000 | 3.3 |
| 10 | 2.0 | RC-102NV | 4.75 | 10,000 | 5.1 |
| 10 | 6.0 | RC-106NV | 13.70 | 10,000 | 9.8 |
| 25 | 6.0 | RC-256NV | 32.23 | 10,000 | 22.0 |
| Pump Type |
Oil Capacity (in3) |
Model Number |
Pressure Rating (psi) |
Oil Displacement per Stroke (in3) |
Weight (lbs) |
|---|---|---|---|---|---|
|
Two Speed |
20 | P-142ALSS | 200 / 10,000 | 0.221 / 0.055 | 4.5 |
| 55 | P-392ALSS | 200 / 10,000 | 0.687 / 0.151 | 9.0 |
| Valve Type | Model Number | Pressure Function |
Pressure Rating (psi) |
Weight (lbs) |
|---|---|---|---|---|
| Manual Check Valve | V-66NV* | Check | 10,000 | 3.9 |
| Pressure Relief Valve | V-152NV* | ±3% Repeatability | 800/10,000 | 3.5 |
