CLP-系列@薄型螺母鎖定液壓油缸
超薄油缸適合在緊湊的結構中應用
安全的螺母鎖定設計適合機械負載支撐
單作用，負載回程
特殊的復合材料鍍層，用以增加抗腐蝕及減少摩擦，運動靈活
溢流孔兼有限制行程的功能
所有型號均配有CR-400快速街頭和防塵帽
|
Cylinder Capacity |
Stroke | Model Number |
Cylinder Effective Area |
Oil Capacity |
Collapsed Height |
Extended Height |
Outside Diameter |
Weight |
|---|---|---|---|---|---|---|---|---|
| ton (max) | (in) | (in2) | (in3) | (in) | (in) | (in) | (lbs) | |
| 60 (67.1) | 1.97 | CLP-602 | 13.42 | 26.42 | 4.92 | 6.89 | 5.51 | 33 |
| 100 (113.7) | 1.97 | CLP-1002 | 22.75 | 44.78 | 5.39 | 7.36 | 6.89 | 57 |
| 160 (179.2) | 1.77 | CLP-1602 | 35.85 | 63.51 | 5.83 | 7.60 | 8.66 | 97 |
| 200 (221.3) | 1.77 | CLP-2002 | 44.27 | 78.43 | 6.10 | 7.87 | 9.65 | 125 |
| 250 (284.2) | 1.77 | CLP-2502 | 56.85 | 100.72 | 6.26 | 8.03 | 10.83 | 163 |
| 400 (433.6) | 1.77 | CLP-4002 | 86.72 | 153.64 | 7.01 | 8.78 | 13.78 | 295 |
| 500 (566.2) | 1.77 | CLP-5002 | 113.25 | 200.63 | 7.56 | 9.33 | 15.75 | 416 |
Note: For longer strokes, see CLL-Series

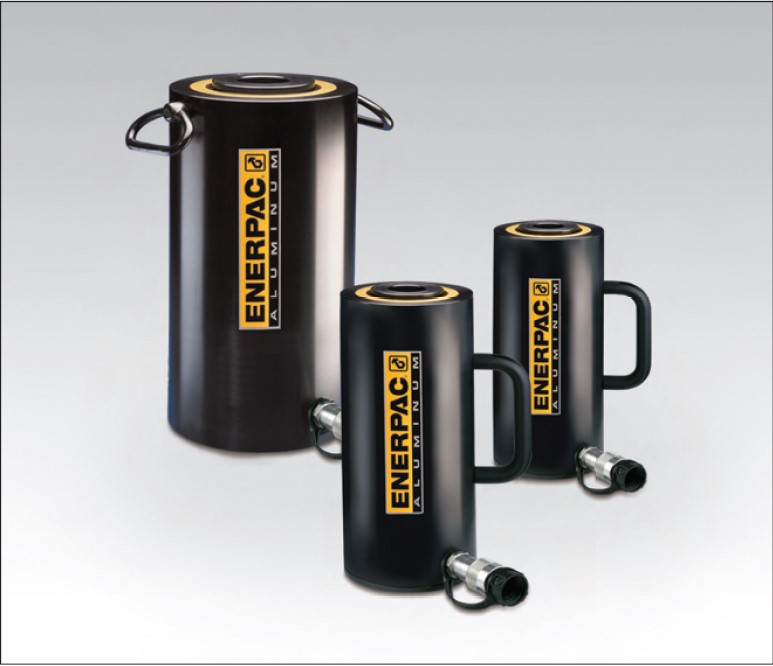

Note: for lightweight aluminium, see RACL-Series
