RAR-系列@雙作用鋁制油缸

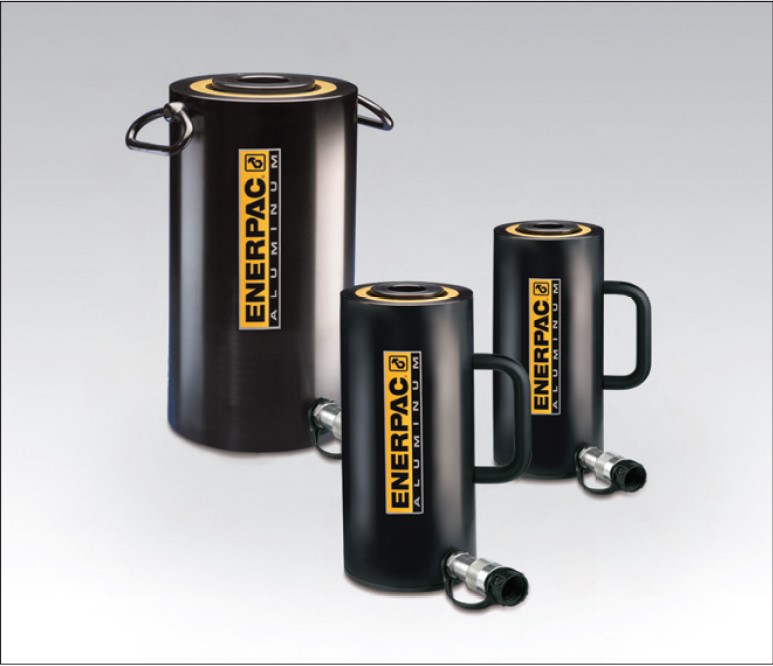

恩派克鋁制油缸是雙作用需求中的輕型首選。
復合支撐環(huán)能防止側面負載，延長油缸使用壽命
所有型號的油缸都配有把手
鋼底座和鞍座防止承載引起的損壞
整體式擋圈防止柱塞過度伸長，并能承受油缸的最大頂升力
內置安全閥防止意外的超壓
雙作用設計使油缸能快速回程，與油管長度和系統(tǒng)壓力損失無關
復合支撐環(huán)防止金屬間的相互接觸，增加油缸壽命，并能防止10%的偏載
|
Cylinder Capacity |
Stroke* |
Model Number |
Maximum Cylinder Capacity |
Cylinder Effective Area |
Oil Capacity |
Collapsed Height |
Outside Diameter |
Weight | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (ton) | (in2) | (in3) | |||||||||
| (ton) | (in) | Push | Pull | Push | Pull | Push | Pull | (in) | (in) | (lbs) | |
|
20 (24.2) |
1.97 | RAR-202 | 24.2 | 14.4 | 4.83 | 2.88 | 9.52 | 5.67 | 7.45 | 4.45 | 16.3 |
| 3.94 | RAR-204 | 19.03 | 11.34 | 9.42 | 4.45 | 17.6 | |||||
| 5.91 | RAR-206 | 28.55 | 17.02 | 11.29 | 4.45 | 19.0 | |||||
| 7.87 | RAR-208 | 38.01 | 22.66 | 13.35 | 4.45 | 20.3 | |||||
| 9.84 | RAR-2010 | 47.53 | 28.34 | 15.32 | 4.45 | 21.6 | |||||
|
30 (34.2) |
1.97 | RAR-302 | 34.2 | 19.0 | 6.85 | 3.80 | 13.49 | 7.49 | 7.92 | 4.92 | 19.0 |
| 3.94 | RAR-304 | 26.99 | 14.97 | 9.89 | 4.92 | 20.9 | |||||
| 5.91 | RAR-306 | 40.48 | 22.46 | 11.86 | 4.92 | 22.9 | |||||
| 7.87 | RAR-308 | 53.91 | 29.91 | 13.83 | 4.92 | 24.9 | |||||
| 9.84 | RAR-3010 | 67.40 | 37.39 | 15.80 | 4.92 | 26.9 | |||||
|
50 (54.9) |
1.97 | RAR-502 | 54.9 | 17.1 | 10.99 | 3.54 | 21.65 | 6.97 | 7.92 | 5.71 | 24.5 |
| 3.94 | RAR-504 | 43.30 | 13.95 | 9.89 | 5.71 | 28.0 | |||||
| 5.91 | RAR-506 | 64.95 | 20.92 | 11.86 | 5.71 | 31.5 | |||||
| 7.87 | RAR-508 | 86.49 | 27.86 | 13.83 | 5.71 | 35.1 | |||||
| 9.84 | RAR-5010 | 108.14 | 34.83 | 15.80 | 5.71 | 38.6 | |||||
|
100 (110.9) |
1.97 | RAR-1002 | 110.9 | 61.7 | 22.19 | 12.33 | 43.71 | 24.29 | 9.89 | 7.28 | 36.2 |
| 3.94 | RAR-1004 | 87.43 | 48.58 | 11.86 | 7.28 | 42.6 | |||||
| 5.91 | RAR-1006 | 131.14 | 72.87 | 13.83 | 7.28 | 48.9 | |||||
| 7.87 | RAR-1008 | 174.64 | 97.04 | 15.80 | 7.28 | 55.3 | |||||
| 9.84 | RAR-10010 | 218.35 | 121.33 | 17.76 | 7.28 | 61.7 | |||||
|
150 (175.9) |
1.97 | RAR-1502 | 175.9 | 102.25 | 35.18 | 20.45 | 69.30 | 40.29 | 9.77 | 9.06 | 53.4 |
| 3.94 | RAR-1504 | 138.61 | 80.57 | 11.74 | 9.06 | 63.7 | |||||
| 5.91 | RAR-1506 | 207.91 | 120.86 | 13.71 | 9.06 | 73.2 | |||||
| 7.87 | RAR-1508 | 276.87 | 160.94 | 15.68 | 9.06 | 83.6 | |||||
| 9.84 | RAR-15010 | 346.17 | 201.23 | 19.61 | 9.06 | 93.9 | |||||
* Custom strokes available.
